Product Description:

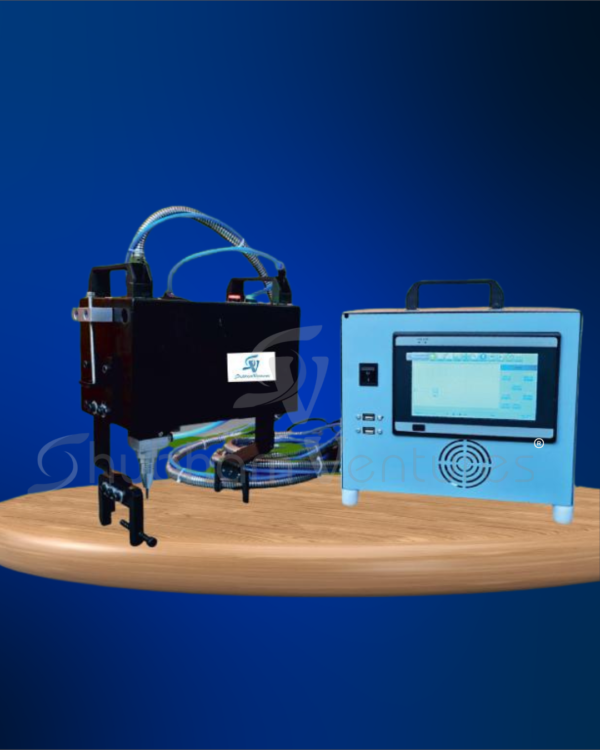

The Hand-Held Dot Peen Marking Machine with Display is a powerful, portable marking solution designed for on-site and flexible industrial marking applications. Built with an integrated LCD controller, this machine operates independently — with no PC or external device required. Ideal for marking large, heavy, or difficult-to-move objects, it delivers permanent and precise marks on metals, alloys, and plastics.
Technical Specifications:
-
Technology: Pneumatic or Electromagnetic Dot Peen
-
Marking Area: 75 x 25 mm / 130 x 50 mm customizable sizes available
-
Operation Mode: Standalone (via integrated LCD controller)
-
Material Compatibility: Mild steel, stainless steel, aluminum, brass, plastic, coated surfaces
-
Marking Depth: Adjustable (0.01–0.5 mm depending on material)
-
Power Supply: 220V AC / 24V DC (based on model)
-
Air Requirement (pneumatic model): 4–6 bar (air compressor needed)
-
Weight: Approx. 6–10 kg (hand-held unit with controller)
-
Interface: Built-in keypad and display with optional USB file input
-
Software Capabilities: Supports serial numbers, dates, time stamps, logos, and QR/2D codes
Key Features:
-
Built-in LCD Display and Keypad – No PC required
-
True Hand-Held Operation – Lightweight and easy to handle on-site
-
Deep, Permanent Marking – Perfect for traceability and compliance
-
Suitable for Any Surface – Works on curved, angled, or vertical parts
-
Field-Ready Design – Built to perform in tough industrial conditions
-
Easy Maintenance – Rugged design with low service requirements
Applications:
-
Chassis numbers on vehicles
-
Structural steel beams and plates
-
Oil and gas equipment
-
Heavy machinery and fabrication parts
-
Aerospace, rail, and construction components
